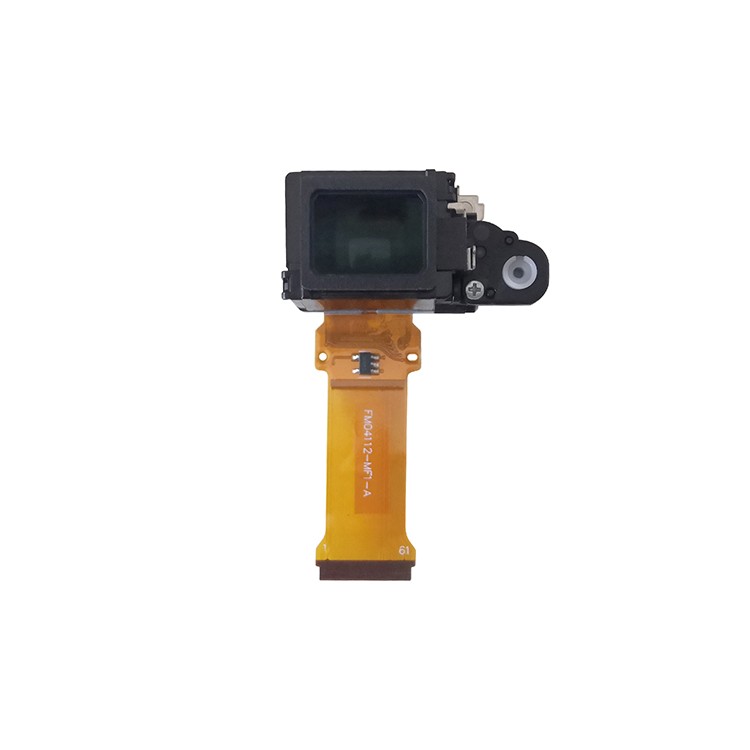

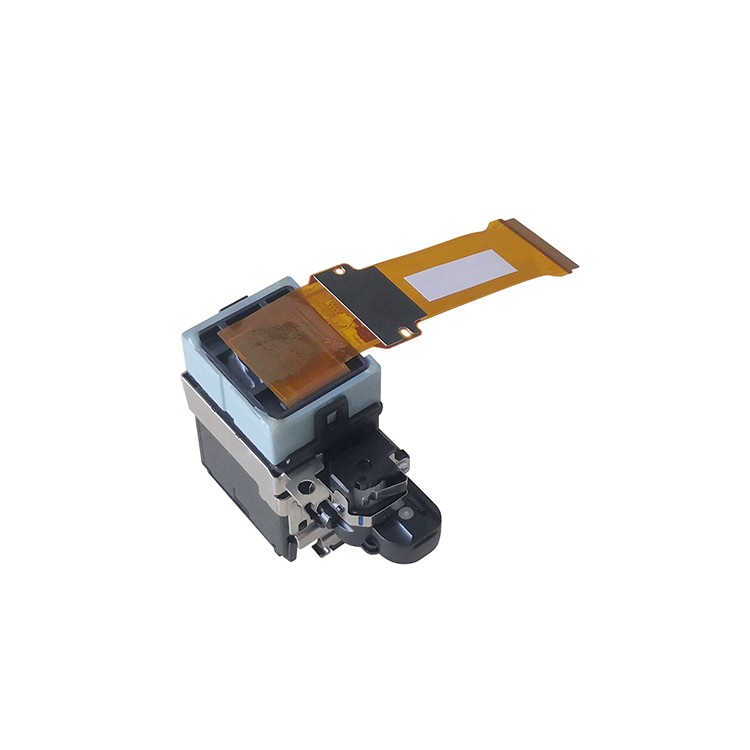

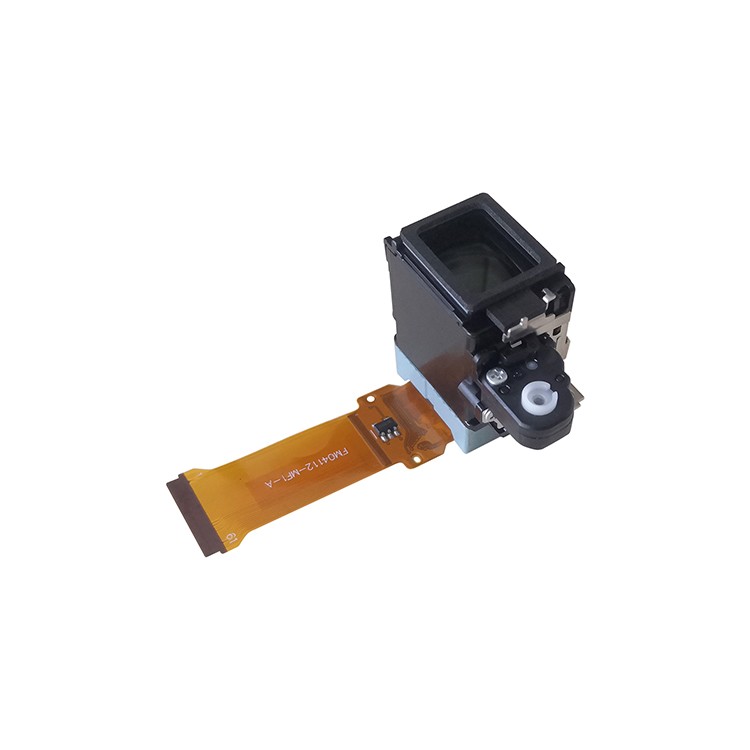

0.39 inch 1024x768 OLED Microdisplay for AR VR

DESCRIPTION

HICENDA HGM0XGA039136A is a cutting-edge 0.39-inch OLED microdisplay engineered to meet the demanding requirements of augmented reality (AR) and virtual reality (VR) systems. With a resolution of 1024x768 RGB pixels, a compact outline dimension of 11.72 × 8.41 mm, and a fine pixel pitch of 7.5 μm, this full-color RGB interface display ensures high fidelity and excellent color rendering across a temperature range of -40℃ to +65℃. The robust storage temperature tolerance of -55℃ to +80℃ further enhances its adaptability in various environments.

It has  many advantages, including:

◆ Small-size, high-definition-type 0.39 XGA display dots 1024 (RGB) × 768 = 2.38M dots

◆ High contrast

◆ Wide color reproduction range

◆ High-speed response

◆ Thin type and light weight

◆ Power-saving function

◆ Up/down and/or right/left inverse display function

◆ Orbit supported

◆ Input interface that supports parallel RGB 24-bit and YCbCr 16-bit input

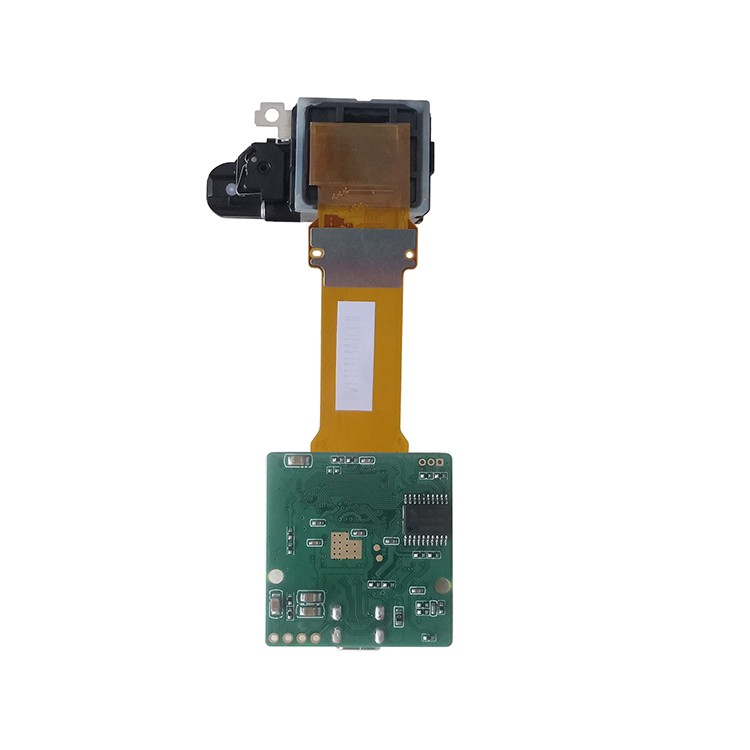

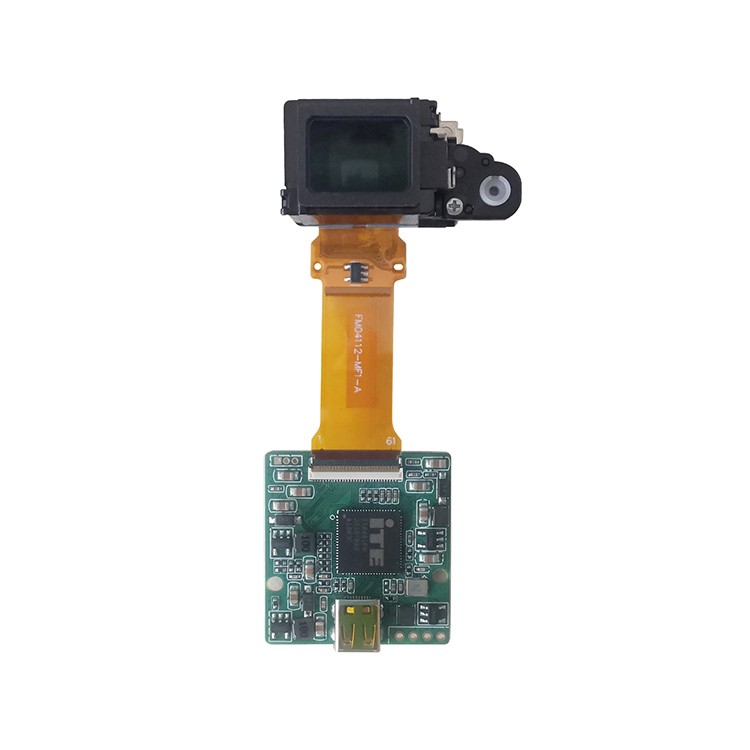

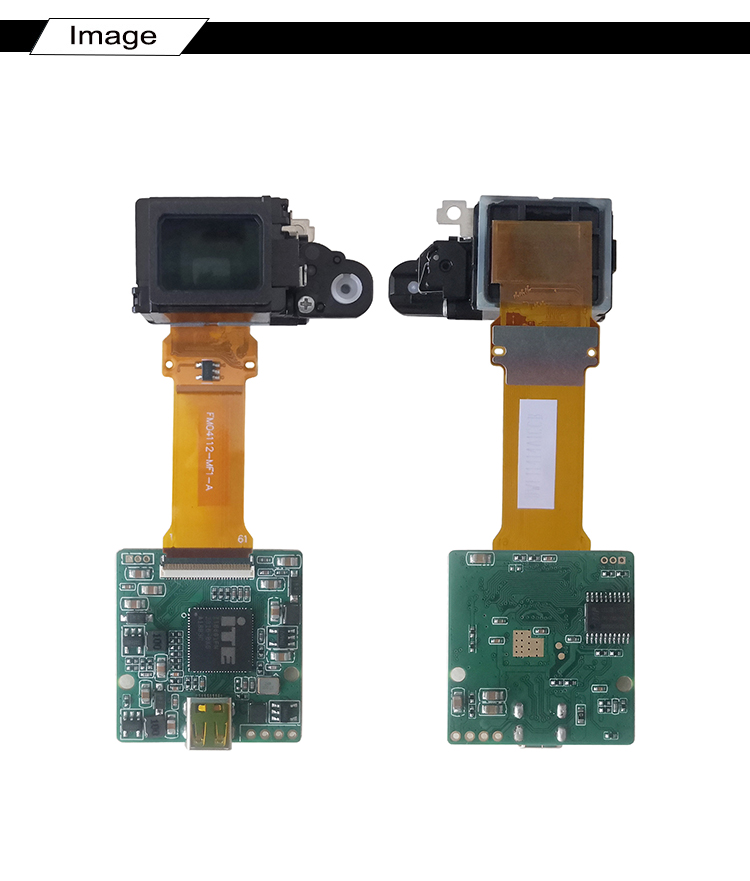

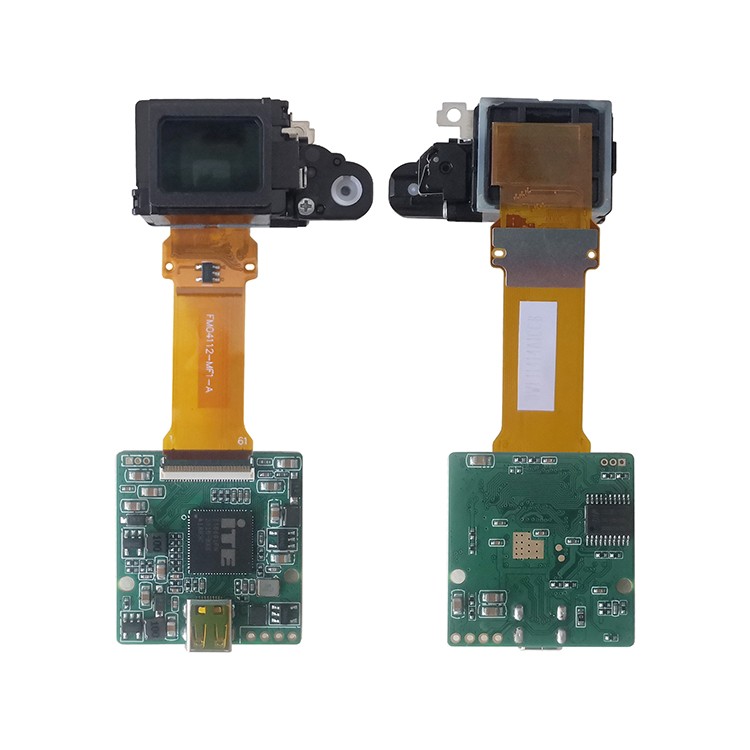

Hicenda Display could provide HDMI  and CVBS controller board, It can connect to laptop, PC with 1024x768 resolution at 60 Hz

High-Resolution Visual Fidelity

At a native resolution of 1024x768 pixels, the microdisplay supports over 16.7 million colors (24-bit depth), delivering crisp and vibrant visuals suitable for immersive optical systems. The pixel arrangement is optimized to reduce color shift and maintain uniformity, essential for applications where spatial accuracy and color realism are critical.

Compact Yet Capable

Despite its miniature 0.39-inch diagonal size, the display incorporates a substantial active area of 7.92 × 6.00 mm². This enables seamless integration into lightweight, space-limited hardware such as AR glasses, head-mounted displays (HMDs), and smart optics.

Performance Metrics and Application Suitability

Environmental Reliability

Designed for resilience, the display functions reliably across a wide operational temperature range, making it suitable for both indoor and outdoor deployment. The component's robust thermal tolerance ensures dependable performance in challenging conditions.

Application Versatility

Thanks to its RGB interface and full-color mode, this micro OLED is particularly well-suited for:

• Wearable AR systems

• Portable VR headsets

• Optical viewfinders

• Medical imaging devices

• Industrial smart glasses

Future Potential and Integration Considerations

Driving Next-Generation Wearable Displays

As micro OLED technology continues to evolve, the HGM0XGA039136A serves as a benchmark in miniaturized high-definition displays. Its engineering precision and thermal stability make it an ideal candidate for integration into compact visual systems, supporting a new era of high-performance AR/VR solutions.

Integration Challenges and Design Recommendations

To optimize performance, careful alignment of optics and thermal management systems is essential. Developers should consider heat dissipation, lens calibration, and interface compatibility during product design.

GENERAL SPECIFICATION

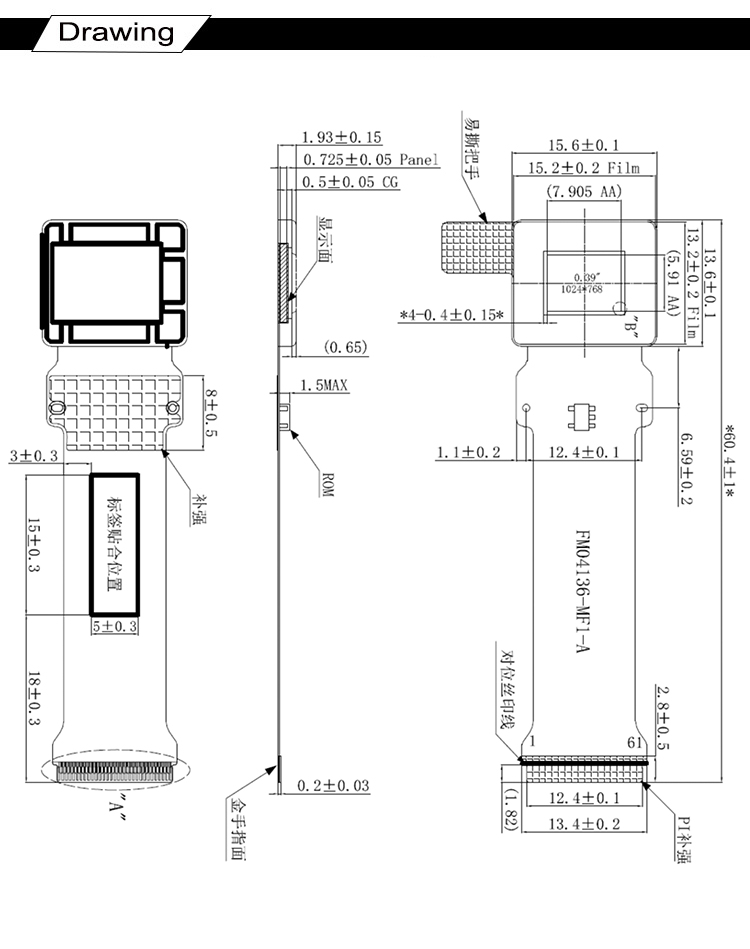

DRAWING

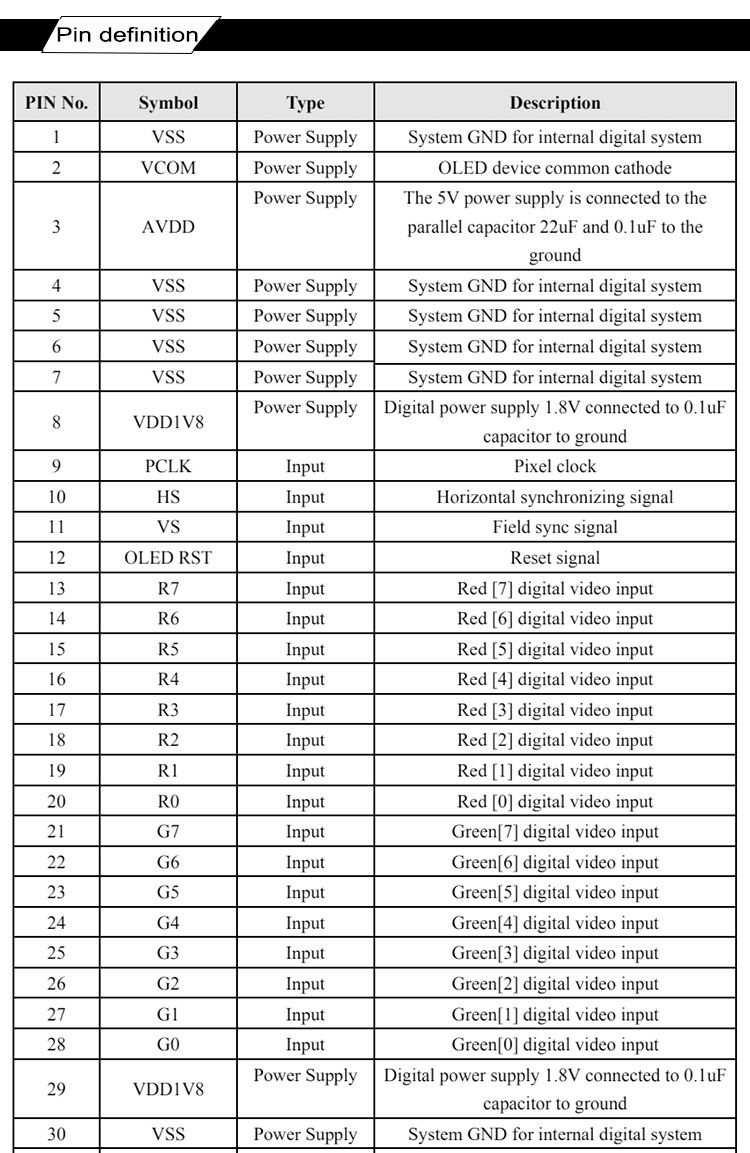

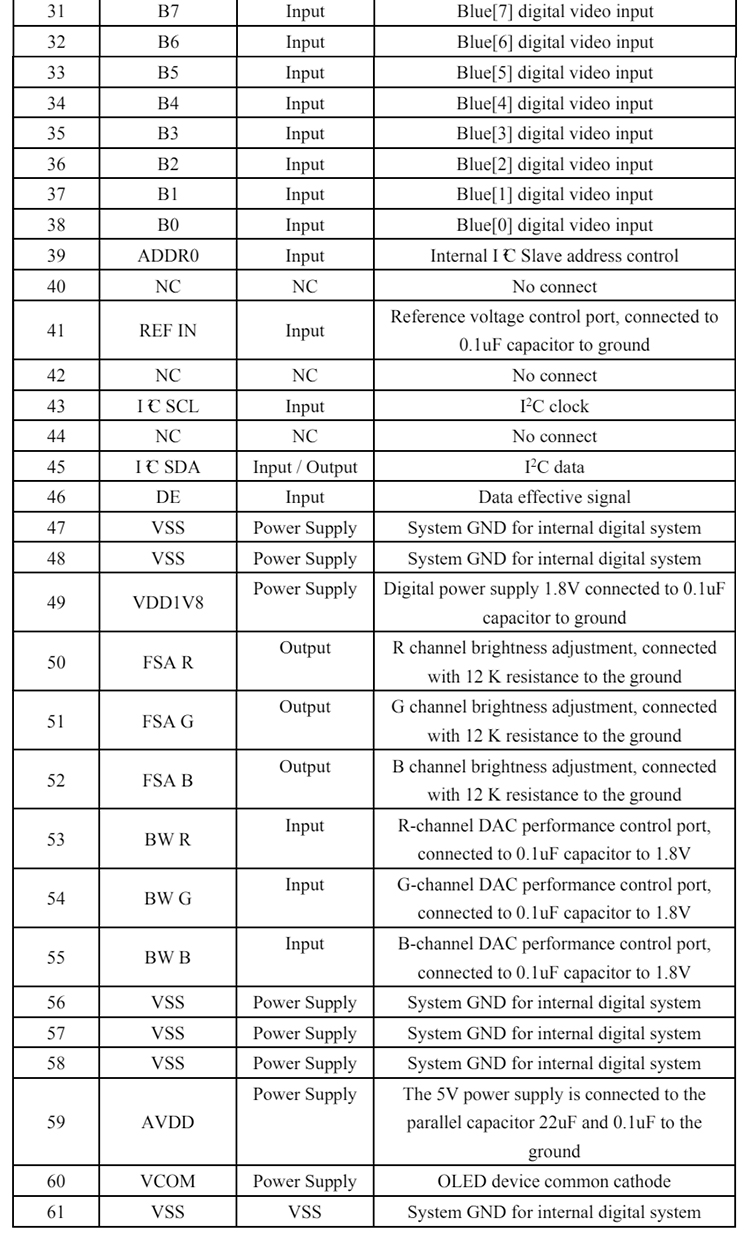

INTERFACE PIN FUNCTION
