DESCRIPTION

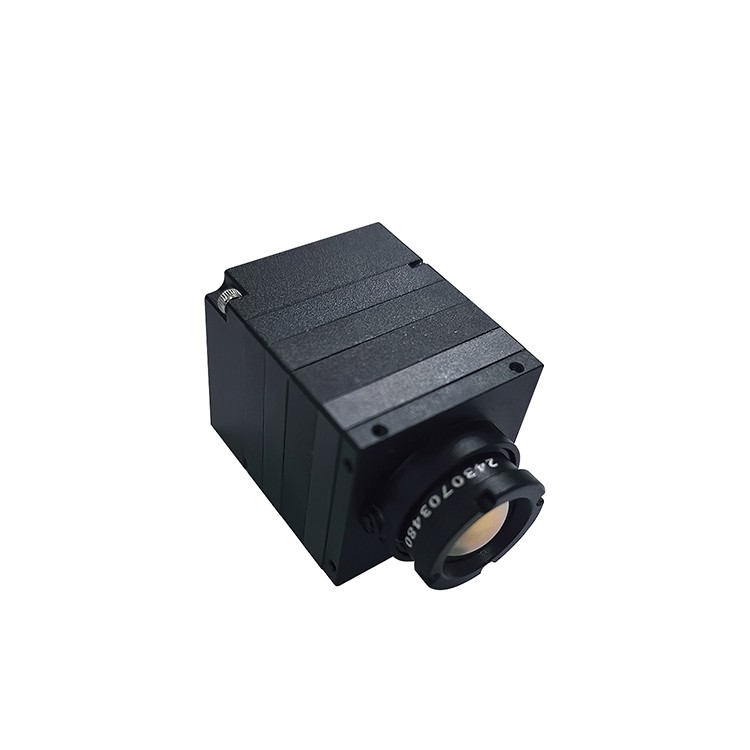

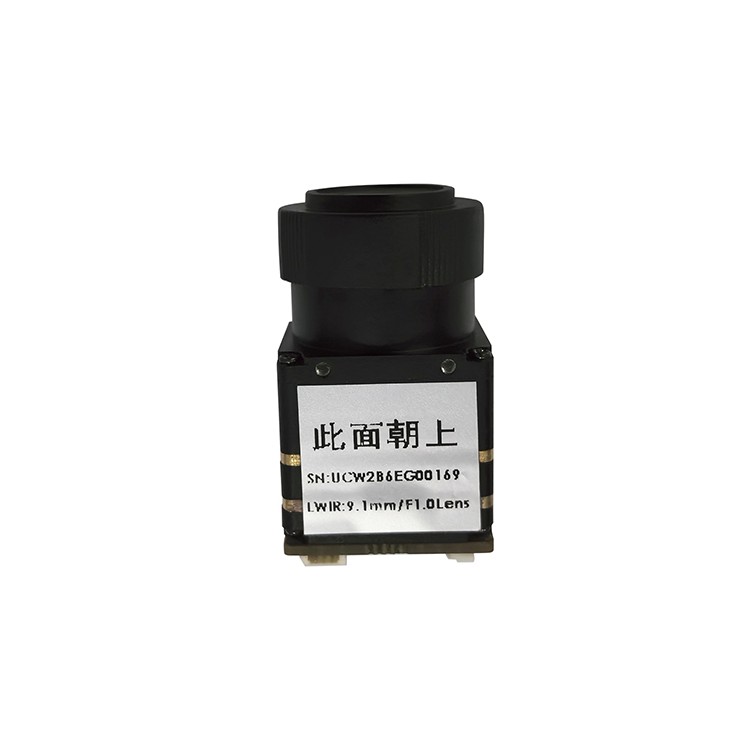

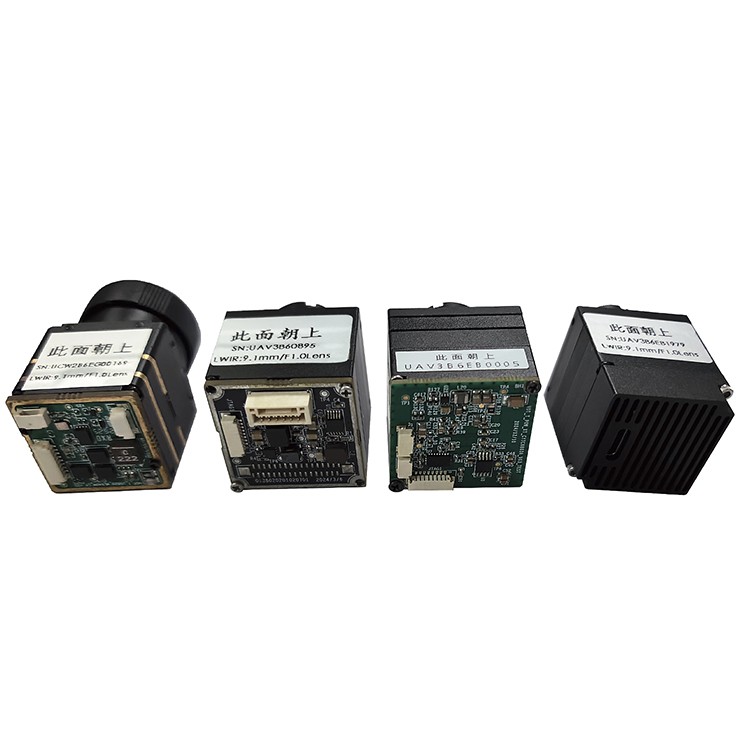

The uncooled thermal camera core with a CVBS interface and 640×512 resolution has emerged as a reliable imaging solution for drone integration. Engineered for aerial platforms, this module combines compact design, low power consumption, and robust environmental adaptability. With a spectral range of 8–14 μm and a VOx detector, it ensures high thermal sensitivity, stable performance, and versatile video output for real-time monitoring and reconnaissance. Its design meets the stringent demands of drone-mounted applications, providing a balance between lightweight construction and advanced imaging functions.

Key Technical Specifications

The thermal core is designed with precision to serve in demanding operational environments. Below is a consolidated specification table highlighting its essential features:

Advanced Imaging Performance

High-Precision Detection

The VOx infrared detector employed in the UCW core delivers outstanding thermal sensitivity and stability. With a NETD ≤40 mK, it can discern minimal temperature variations, enabling clear visualization of subtle heat signatures in complex scenes such as forest canopies, power lines, or building envelopes.

Intelligent Image Optimization

The module incorporates NUC (Non-Uniformity Correction) along with 2D/3D noise reduction algorithms, ensuring consistent image clarity even under fluctuating environmental or electronic noise conditions. Its real-time image enhancement algorithms improve contrast and edge definition, supporting both automated and manual control of brightness and polarity.

System Integration and Reliability

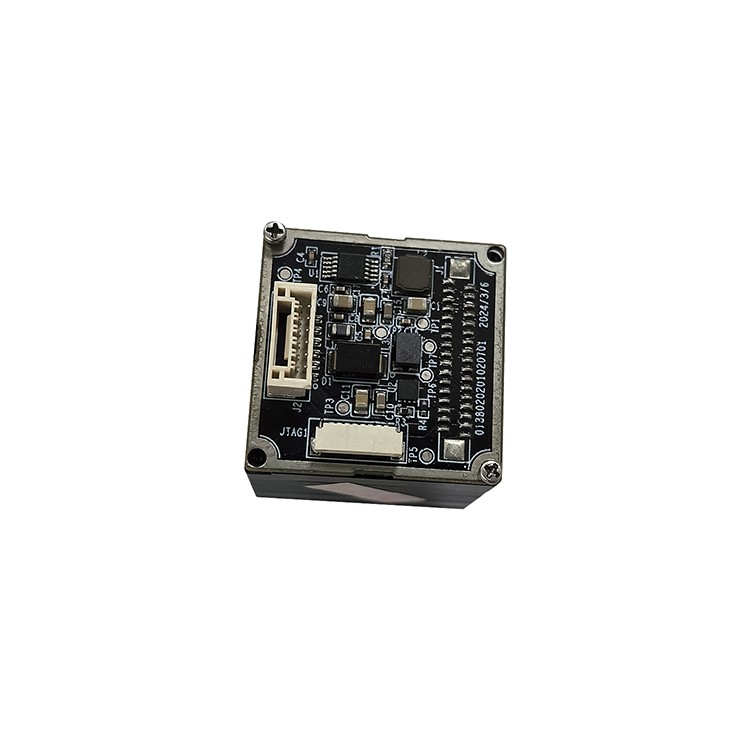

Flexible Connectivity

The UCW thermal core supports UART TTL and USB communication interfaces, facilitating integration with diverse drone control systems and data transmission modules. Its USB video output allows direct access to thermal streams for analysis and post-processing.

Robust Power Management

The module’s DC 5V power supply design features multiple layers of protection—including overcurrent, overvoltage, reverse input, and surge suppression. This ensures operational safety and reliability in dynamic aerial environments.

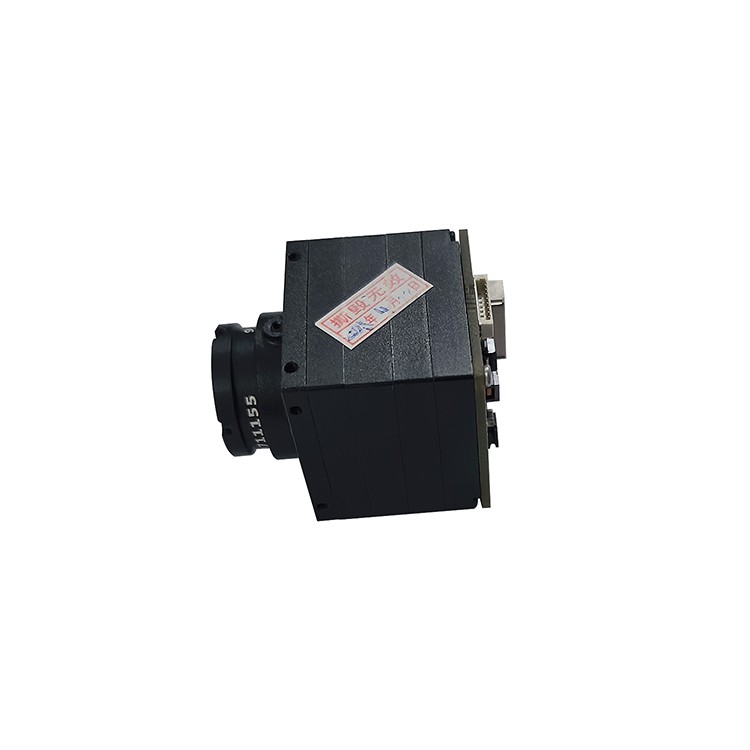

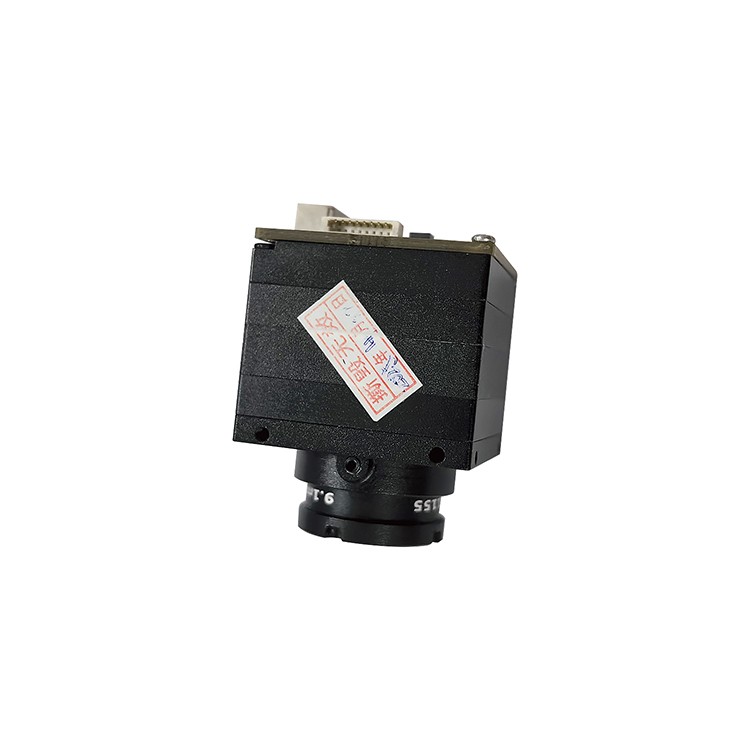

Compact Design and Environmental Durability

With a total weight of only 24.5 g and compact dimensions of 21×21×33.9 mm, the UCW core is optimized for drones requiring lightweight payloads. Its rugged construction withstands temperature ranges from -20°C to +60°C (operation) and -45°C to +85°C (storage), while maintaining full functionality under non-condensing humidity up to 95%.

Applications in Drone-Based Thermal Imaging

Precision Aerial Surveillance

The UCW 640×512 core enhances drone capabilities in surveillance, inspection, and rescue operations. Its ability to detect fine temperature gradients enables accurate monitoring of electrical installations, solar panels, pipelines, and agricultural conditions.

Environmental and Industrial Monitoring

From wildlife observation to infrastructure diagnostics, the module’s wide spectral response and high sensitivity make it adaptable to multiple professional fields requiring real-time thermal feedback and stable performance under challenging outdoor conditions.

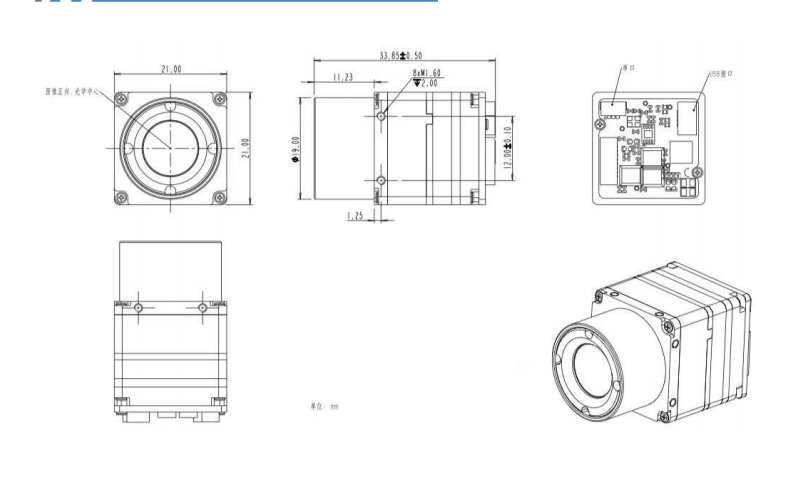

DRAWING

Conclusion

The UCW Thermal Imaging Core 640×512 embodies a balance of compactness, precision, and versatility. Its high-sensitivity VOx detector, advanced digital image optimization, and robust power management system establish it as a dependable choice for drone-based thermal imaging. Whether in environmental surveillance, emergency response, or industrial inspection, the UCW 640×512 provides researchers and engineers with the clarity and reliability essential for next-generation aerial thermal sensing systems.
